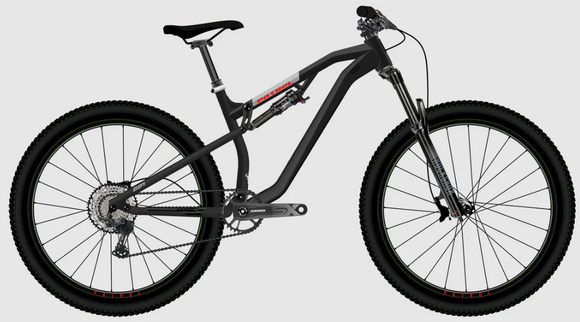

Patrol 691 EVO SL Enduro MTB
P691EVSL22SBSLPatrol 691 EVO SL Enduro Mountain Bike
The 691 EVO - An ultimate long-travel enduro machine ready to descend deeper than ever before.
Patrol's flagship Enduro bike is more capable than ever with improve handling blending the balance of fun and efficiency while taking high-speed stability to the next level.
Running on large 29in wheels the 691 is built to descend the roughest valleys, attack the local bike park or clock up the miles.
INCREDIBLY CAPABLE — ABSOLUTELY FAST UP AND DOWN THE TRAIL.
THE EVO GAINS A FEW MM'S IN LENGTH BRINGING A LARGE SIZE FRAME UP FROM 466MM TO 475MM. COMBINED WITH A SEAT ANGLE OF 76-DEGREES AND A HEAD-ANGLE OF 65-DEGREES THE 691 EVO LOOKS LIKE A FAR MORE PURPOSEFUL AND CAPABLE BIKE.
Â
SPECIFICATIONS
FRAME:
PATROL E-SIX alloy, 12Ă—148 mm, 150mm travel
SUSPENSION:
Fork - FOX 38 Factory, 170mm travel, 44mm rake
Rear Shock - FOX Float X2, 2-pos, 8.5Ă—2.5
DRIVETAIN:
Chainrings - Shimano SM-CRE80-12-B, 34t
Shift Levers - SHIMANO Deore XT M8100
Crankset - Shimano FC-E8000
Rear Derailleur - SHIMANO Deore XT M8100, 12s
Cassette - SHIMANO Deore XT M8130-1, 32t /Â SHIMANO SLX M7100, 12s, 10-51t
WHEELS:
Rims - 29" Sun Ringle Duroc SD37 MTB Rim
Rear Hub - SHIMANO SLX hubs
Rear Tire - MAXXIS DHR II 3C/EXO/TR 29Ă—2.60
Front Tire - MAXXIS Minion DHF 3C/EXO/TR 29Ă—2.60
Front Hub - SHIMANO SLX hubs
BRAKES:
Rear Brake - Shimano XT M8120 hydraulic disc brakeset, 180mm
Front Brake - Shimano XT M8120 hydraulic disc brakeset, 200mm
Â
COCKPIT:
Seatpost - X FUSION Manic, 30.9mm, 150mm (S/M) – 170mm (L/XL)
Stem - Forged alloy, 4-bolt, 5mm rise, 40mm
GEOMETRY
| SMALL | MEDIUM | LARGE | X-LARGE | |
| Head Tube Angle | 65° | 65° | 65° | 65° |
| Head Tube Length | 105mm | 110mm | 115mm | 125mm |
| Top Tube Horizontal | 566mm | 587mm | 609mm | 627mm |
| Reach | 435mm | 455mm | 475mm | 490mm |
| Standover | 716mm | 719mm | 722mm | 724mm |
| Stack | 609mm | 614mm | 614mm | 627mm |
| Seat Tube Length | 400mm | 420mm | 455mm | 470mm |
| Seat Angle | 76° | 76° | 76° | 76° |
| Bottom Bracket Height | 349mm | 349mm | 349mm | 349mm |
| Bottom Bracket Drop | -27mm | -27mm | -27mm | -27mm |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| Wheelbase | 1199mm | 1221mm | 1244mm | 1263mm |
